LiveMregsAnalysis Class Reference

Dataflow analysis to determine which machine registers contain live values. More...

#include "live_mregs.h"

Inheritance diagram for LiveMregsAnalysis:

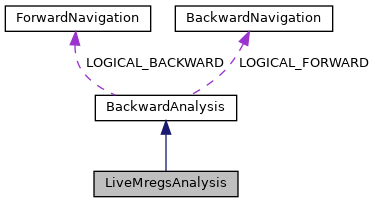

Collaboration diagram for LiveMregsAnalysis:

Public Types
typedef std::bitset< MAX_MREGS >	FactType
	Fact type is bitset of machine register numbers.
typedef InstructionSequence::const_reverse_iterator	InstructionIterator
	Iterator type for iterating over instructions in a basic block in "analysis" order.

Public Member Functions
FactType	get_top_fact () const
	The "top" fact is an unknown value that combines nondestructively with known facts. More...
FactType	combine_facts (const FactType &left, const FactType &right) const
	Combine live sets. For this analysis, we use union.
void	model_instruction (Instruction *ins, FactType &fact) const
	Model an instruction. More...
std::string	fact_to_string (const FactType &fact) const
	Convert a dataflow fact to a string (for printing the CFG annotated with dataflow facts) More...
InstructionIterator	begin (std::shared_ptr< InstructionSequence > bb) const
	Get a begin iterator over the instructions in a basic block in "analysis" order. More...
InstructionIterator	end (std::shared_ptr< InstructionSequence > bb) const
	Get an end iterator over the instructions in a basic block in "analysis" order. More...

Public Attributes
BackwardNavigation	LOGICAL_FORWARD
	Logical forward navigation through the ControlFlowGraph in analysis order.
ForwardNavigation	LOGICAL_BACKWARD
	Logical backward navigation through the ControlFlowGraph in analysis order.

Static Public Attributes
static const unsigned	MAX_MREGS = 16
static const DataflowDirection	DIRECTION = DataflowDirection::BACKWARD
	Analysis direction is backward.

Detailed Description

Dataflow analysis to determine which machine registers contain live values.

Member Function Documentation

begin()

InstructionIterator BackwardAnalysis::begin ( std::shared_ptr< InstructionSequence >  bb ) const

inlineinherited

Get a begin iterator over the instructions in a basic block in "analysis" order.

Parameters

bb	a basic block

Returns

begin iterator over the instructions in the basic block

end()

InstructionIterator BackwardAnalysis::end ( std::shared_ptr< InstructionSequence >  bb ) const

inlineinherited

Get an end iterator over the instructions in a basic block in "analysis" order.

Parameters

bb	a basic block

Returns

end iterator over the instructions in the basic block

fact_to_string()

std::string LiveMregsAnalysis::fact_to_string ( const FactType &  fact ) const

inline

Convert a dataflow fact to a string (for printing the CFG annotated with dataflow facts)

Parameters

fact	dataflow fact (set of machine register numbers)

Returns

string representation of the dataflow fact

get_top_fact()

FactType LiveMregsAnalysis::get_top_fact ( ) const

inline

The "top" fact is an unknown value that combines nondestructively with known facts.

For this analysis, it's the empty set.

model_instruction()

void LiveMregsAnalysis::model_instruction ( Instruction *  ins, FactType &  fact  ) const

inline

Model an instruction.

Parameters

ins	the Instruction to model (backwards)
fact	initially represents what is true after the instruction (in program order), and will be updated to represent what is true before the instruction (in program order)

---

The documentation for this class was generated from the following file:

• live_mregs.h
