cfg_builder.h File Reference

Support for building a ControlFlowGraph from an InstructionSequence. More...

#include "cfg.h"
#include "highlevel.h"
#include "lowlevel.h"

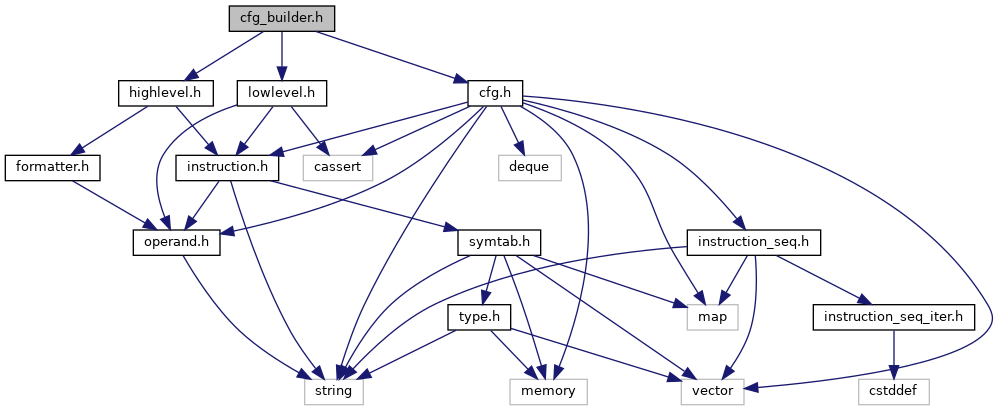

Include dependency graph for cfg_builder.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ControlFlowGraphBuilder< InstructionProperties >
	ControlFlowGraphBuilder builds a ControlFlowGraph from an InstructionSequence. More...

Functions
ControlFlowGraphBuilder< HighLevelInstructionProperties >	make_highlevel_cfg_builder (const std::shared_ptr< InstructionSequence > &iseq)
	Return a ControlFlowGraphBuilder for building a high-level ControlFlowGraph. More...
ControlFlowGraphBuilder< LowLevelInstructionProperties >	make_lowlevel_cfg_builder (const std::shared_ptr< InstructionSequence > &iseq)
	Return a ControlFlowGraphBuilder for building a low-level ControlFlowGraph. More...

Detailed Description

Support for building a ControlFlowGraph from an InstructionSequence.

Function Documentation

make_highlevel_cfg_builder()

ControlFlowGraphBuilder<HighLevelInstructionProperties> make_highlevel_cfg_builder ( const std::shared_ptr< InstructionSequence > &  iseq )

inline

Return a ControlFlowGraphBuilder for building a high-level ControlFlowGraph.

Example usage:

auto hl_cfg_builder = ::make_highlevel_cfg_builder(hl_iseq);

Parameters

the	InstructionSequence containing the high-level instructions

Returns

a shared pointer to the resulting ControlFlowGraph

make_lowlevel_cfg_builder()

ControlFlowGraphBuilder<LowLevelInstructionProperties> make_lowlevel_cfg_builder ( const std::shared_ptr< InstructionSequence > &  iseq )

inline

Return a ControlFlowGraphBuilder for building a low-level ControlFlowGraph.

Example usage:

auto ll_cfg_builder = ::make_lowlevel_cfg_builder(ll_iseq);

Parameters

the	InstructionSequence containing the low-level instructions

Returns

a shared pointer to the resulting ControlFlowGraph
