ControlFlowGraph and associated types. More...
#include <cassert>#include <vector>#include <map>#include <deque>#include <string>#include <memory>#include "instruction.h"#include "instruction_seq.h"#include "operand.h"

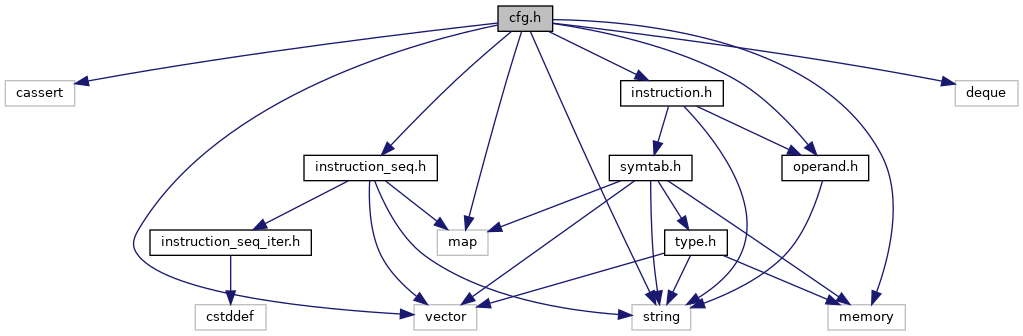

Include dependency graph for cfg.h:

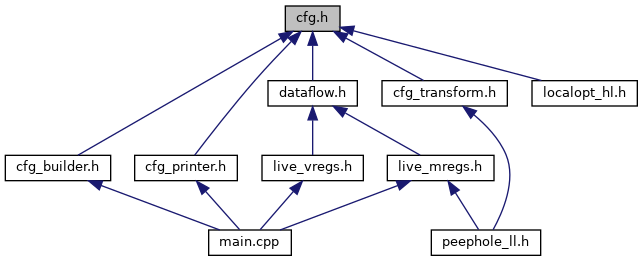

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| class | Edge |
| Control-flow graph edge data type. More... | |
| class | ControlFlowGraph |
| ControlFlowGraph: graph of basic blocks connected by control edges. More... | |
Enumerations | |
| enum | EdgeKind { EDGE_FALLTHROUGH , EDGE_BRANCH } |
| Control-flow graph edge kinds. More... | |
Detailed Description
ControlFlowGraph and associated types.
A control-flow graph is a graph of basic blocks. Each basic block is an InstructionSequence containing the instructions of that basic block.
Enumeration Type Documentation
◆ EdgeKind
| enum EdgeKind |
Control-flow graph edge kinds.
Edges can be
- "fall through", meaning the target block's first instruction follows the source block's last instruction in the original InstructionSequence
- "branch", meaning that the target block's first instruction is not the immediate successor of the source block's last instruction
